| Usage Scenario (Large Scale) | Application Scenario | Scheme Number | Construction Plan Package |

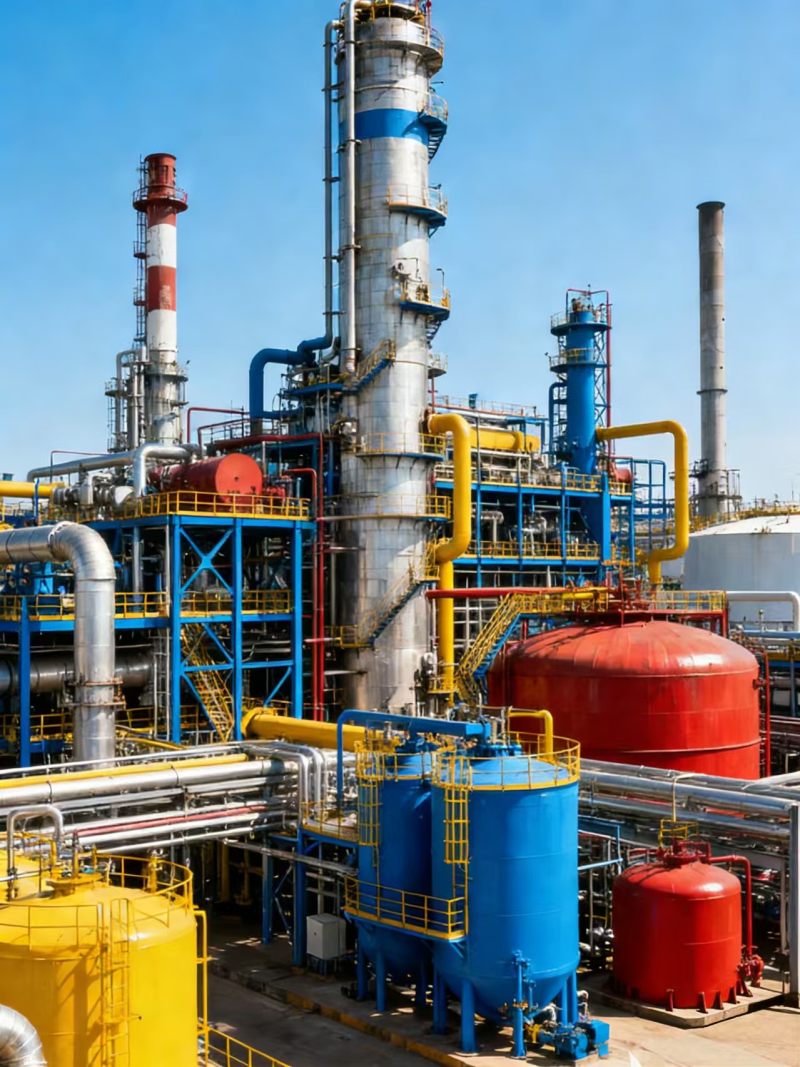

| Petrochemical Protection Plan | Non-insulated carbon steel, outdoor steel structures, pipe racks, and exterior surfaces of above-ground pipelines | 1 | Epoxy Zinc- rich Primer + Epoxy Micaceous Iron Oxide Intermediate Coat + Acrylic Polyurethane Topcoat |
| Carbon steel underneath insulation at 100°C | 1 | Epoxy Phenolic Primer + Epoxy Phenolic Topcoat |
| Low-alloy steel | 1 | General-purpose Epoxy Primer + Acrylic Polyurethane Topcoat |
| High-temperature carbon steel 200°C | 1 | Inorganic Zinc-rich Primer + Silicone High Temperature Topcoat (200℃, 300℃, 400℃, 500℃, 600℃) |
| High-temperature carbon steel | 1 | Inorganic Zinc-Rich Primer + Silicone High Temperature Resistant Paint |
| Insulated stainless steel, temperature ≤ 120°C | 1 | Epoxy Resin Paint+Without Corrosion Inhibitor |
| Coating system for crude oil storage tanks: exterior of bottom plate | 1 | Epoxy Coal Tar Pitch Paint |
| Around the exterior of the bottom plate | 1 | Weldable Inorganic Zinc Silicate Primer |
| Water zones on the interior surface of the crude oil tank | 1 | Modified Phenolic Epoxy Paint |
| Oil-wetted area on the inner wall of the storage tank | 1 | Epoxy Phenolic Antistatic Paint |
| Underside of the inner wall of the floating roof | 1 | Epoxy Oil-resistant Antistatic Paint (Non-carbon System) |
| Inner surface of the floating deck | 1 | Waterborne Epoxy Paint |
| Non-insulated parts of the tank exterior | 1 | Epoxy Zinc- rich Primer + Epoxy Micaceous Iron Oxide Intermediate Coat + Acrylic Polyurethane Topcoat |
| Insulated parts of the tank exterior | 1 | Phenolic Epoxy Paint |
| Outer surface of the heating coil | 1 | High Temperature Resistant Epoxy Phenolic Tank Paint |
| Spherical tank supporting system; inner surface of spherical tank* | 1 | Inorganic Zinc Silicate Primer |
| Exterior of spherical tank | 1 | Epoxy Zinc-rich Primer + Heat Reflective & Insulation Coating + Acrylic Polyurethane Topcoat |
| Interior wall of oil-, acid-, and sulfide-containing wastewater storage tank | 1 | Modified Phenolic Epoxy Paint |
| Indoor steel structures subject to acid and alkali corrosion | 1 | Modified Phenolic Epoxy Paint |
